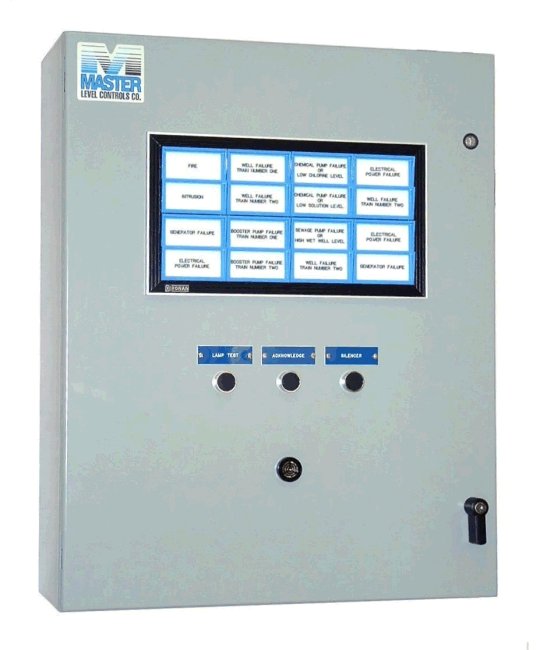

DH2A-830-1 CallMaster

Annunciator Panel

16 CHANNEL ALARM PANEL

Description:

The CallMaster is an annunciator panel for 4, 8, or 16 alarm indications. The light display is a modular light cabinet with individual 1" x 3" windows. Each window is illuminated by two lamps for increased reliability and uniform light distribution. Each alarm is configured and programmed into a Master Logic Controller (PLC).

Function:

On alarm, the indicator light goes steady and any remote lights or horns are activated. When the alarm is acknowledged the remote devices go off and the panel indicator flashes until the alarm clears. A lamp test and alarm silencer switch are also provided.

Features:

  • 16 Alarm Annunciator Panel
  • Engraved light panel
  • Programmed Micro Logic Controller
  • Output relays for remote alarm light and horn
  • Furnished with lightning protection and control breaker
  • NEMA 12 enclosure 24" x 30" x 8"
